Backend — Architecture¶

The Genesis backend is a Spring Boot 3 modular monolith on Java 21, built with Maven. It exposes a REST API consumed by the Next.js frontend and persists everything in PostgreSQL.

The backend's layered shape at a glance:

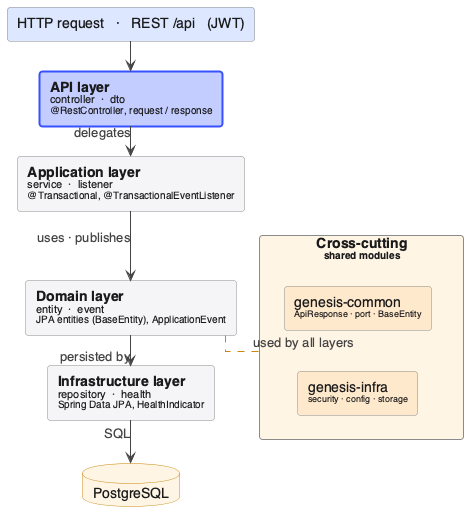

Layered architecture

Module structure¶

The build is a Maven multi-module project. genesis-api is the entry point — it holds the @SpringBootApplication class, wires every other module together, and contains no business logic of its own.

Module	Role
`genesis-api`	Application entry point; configuration and wiring only
`genesis-common`	Shared DTOs, the `TextProcessor` interface, value objects
`genesis-user`	Authentication (JWT + refresh tokens) and user management
`genesis-workspace`	Workspace and document lifecycle, member roles
`genesis-coref`	Coreference mentions and clusters
`genesis-ner`	Named-entity annotation
`genesis-pos`	Part-of-speech tagging, custom tag sets
`genesis-wsd`	Word-sense disambiguation, sense inventories
`genesis-editor`	Per-user editor session persistence
`genesis-notification`	Event-driven in-app notifications
`genesis-recommend`	Annotation recommendations
`genesis-import-export`	TXT / CoNLL-2012 import and export
`genesis-logging`	Structured logging support
`genesis-infra`	Database config, pluggable file storage (Cloudinary or local disk), cross-cutting infrastructure

Layering inside each module¶

Every module follows the same internal layout:

controller/   thin REST layer — delegates immediately to the service
service/      transactional business logic
repository/   Spring Data JPA interfaces (infra layer only)
entity/       JPA entities
dto/          request/response objects — entities never cross module boundaries
event/        Spring ApplicationEvent subclasses for cross-module signals
health/       per-module HealthIndicator implementations

Cross-module communication¶

Modules never call each other's services directly. Instead they publish Spring application events and interested modules listen. Example — the document upload flow:

DocumentController
  → DocumentService            (saves document, publishes DocumentUploadedEvent)
    → ImportService            (listens; runs prepareForAnnotation)
      → TextProcessor          (tokenises into sentences/tokens)
        → publishes DocumentTokenizedEvent
          → notification module creates in-app notifications

This keeps module boundaries enforceable (verified with ArchUnit tests) and makes new annotation types addable without touching existing modules.

The full module dependency and event graph:

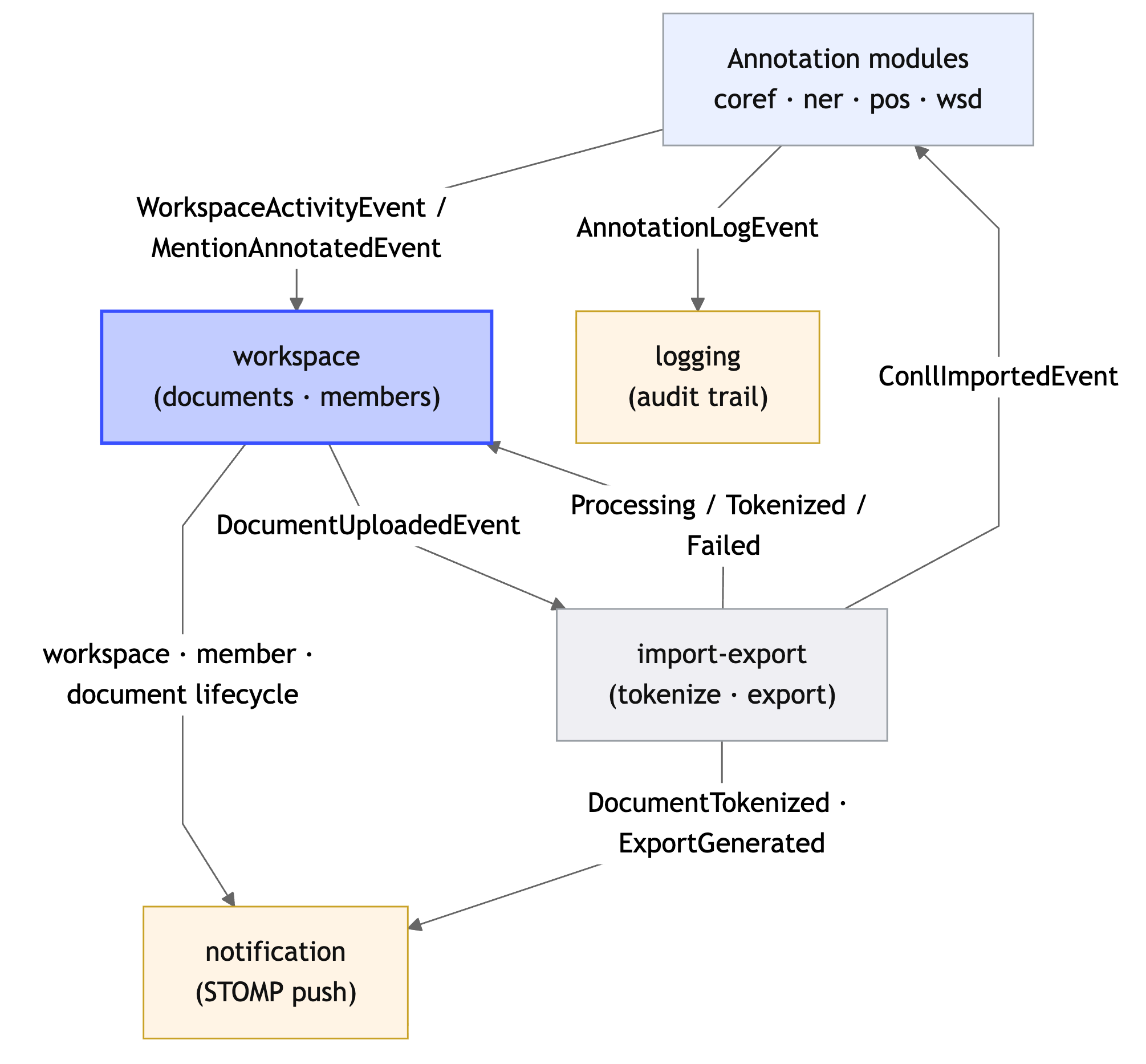

Module dependencies and events

Authentication¶

JWT access tokens (default expiry 15 minutes) signed with HS256; the secret must be at least 256 bits and the app refuses to boot without it.
Refresh tokens (default 7 days) with rotation on use.
Tokens are issued by the user module; a Spring Security filter validates them on every request.

API conventions¶

Every endpoint returns a uniform envelope: { "success": boolean, "data": T, "message": string }.
Database identifiers and column/table names are snake_case.
Pagination on large collections (documents, tokens) uses cursor/keyset pagination rather than offsets.
/actuator/health is the liveness/readiness endpoint; in the prod profile only health, info, metrics, and prometheus are exposed.

Persistence¶

PostgreSQL with Flyway migrations (versioned V* scripts) in the prod profile; the dev profile may use ddl-auto=update for speed.
Connection pooling via HikariCP with conservative pool sizes suitable for a single-VM deployment.
Uploaded source files go to the configured storage backend — Cloudinary or the local filesystem (STORAGE_PROVIDER); the database stores metadata, tokens, sentences, and annotations. After tokenization the source is read only for re-tokenizing, so STORAGE_RETAIN_SOURCE=false can reclaim it.

Configuration¶

All configuration is environment-driven (12-factor). The important variables:

Variable	Purpose
`DB_URL`, `DB_USERNAME`, `DB_PASSWORD`	PostgreSQL connection
`JWT_SECRET`	Token signing key (≥ 32 chars, required)
`JWT_ACCESS_TOKEN_EXPIRY`, `JWT_REFRESH_TOKEN_EXPIRY`	Optional, Spring Duration strings
`STORAGE_PROVIDER`	`cloudinary` (default) or `local`
`STORAGE_RETAIN_SOURCE`	Keep the raw upload after tokenization (default `true`)
`STORAGE_LOCAL_BASE_PATH`	Upload directory for the `local` provider (default `./data/uploads`)
`CLOUDINARY_CLOUD_NAME`, `CLOUDINARY_API_KEY`, `CLOUDINARY_API_SECRET`	File storage — required only when `STORAGE_PROVIDER=cloudinary`
`CORS_ALLOWED_ORIGINS`	Allowed frontend origins — required in prod
`SPRING_PROFILES_ACTIVE`	`dev` or `prod`
`PORT`	HTTP port (default 8080)

Build & runtime¶

mvn clean package produces a single executable jar in genesis-api/target/.
The repo ships a multi-stage Dockerfile: a Maven/JDK 21 build stage with per-module dependency caching, then a slim JRE 21 Alpine runtime stage.
In the prod profile the app writes a rolling log file to /app/logs/ (rotated daily, 30 days retained) in addition to stdout.
